Tamiz System
A counter-window system with fixed or adjustable louvres.
Technical Data
Transmittance
Thermal resistance of the counterwindow and the
thermal chamber ▲R=0.08 m²K/W
Calculations according to EN ISO 10077-1:2000
Uw window transmittance
Uw window transmittance
Closing possibilities
Closing with fixed or adjustable louvres
Opaque closing (panel sandwich)
Glazed closing
Opening possibilities
Practicable 1, 2, 3 & 4 sashes
Folding
Slider

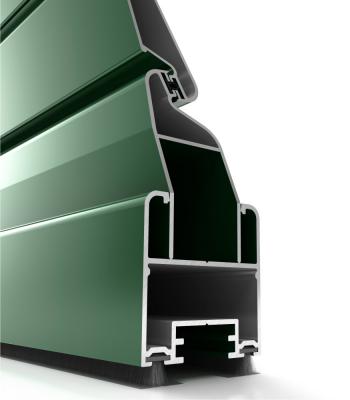

Sections / Profile thickness
SECTIONS
· Frame – 47 mm.
· Sash – 40 mm.
PROFILE THICKNESS
Window 1,3 mm.
Door 1,5 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Height(H)= 2.500 mm.
*Single sash opening.
Maximum weight/sash 65 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Wind loading resistance
(UNE 13659:2004): CLASS 5
Reference test 1,5 x 1,5 m., 2 sashes.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
