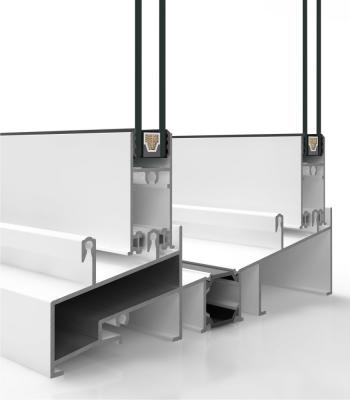

5000 Double Sliding System with thermal break
A thermally broken double window sliding system and shutter guide inserted between the external and internal sashes.
Technical Data
Accoustic insulation
Maximum glazing: 18 mm.
Accoustic insulation Rw >40 dB
Transmittance
Uw from 1,3 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Sliding of 2, 3 & 4 sashes
Sections / Profile thickness
SECTIONS
· Frame – 199 mm.
· Sash – 28 mm.
PROFILE THICKNESS
Window 1,5 mm.
Polyamide strip length:
16 & 20 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Height(H)= 2.600 mm.
Maximum weight/sash 80 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 3
Water tightness (EN 12208:2000):
CLASS 8A
Wind resistance (EN 12210:2000):
CLASS C4
Reference test
1,25 x 1,50 m., 2 sashes
Finishes
Possibility of dual colour
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
