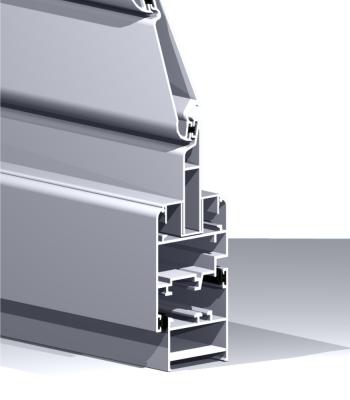

Mallorquina System
Counter- window system consisting of fixed or adjustable louvres.
Technical Data
Transmittance
Thermal resistance of the counterwindow
and the thermal chamber▲R=0.08 m²K/W
Calculations according to EN ISO 10077-1:2000
Uw window transmittance
Uws transmittance of the
window-counterwindow assembly
Opening possibilities
Practicable 1, 2, 3 & 4 sashes
Folding
Sections / Profile thickness
SECTIONS
· Frame – 40 mm.
· Sash – 48 mm.
PROFILE THICKNESS
Window 1,3 mm.
Door 1,4 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Height(H)= 2.500 mm.
*Single sash window, practicable
Maximum weight/sash 100 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Wind loading resistance
(UNE 13659:2004) : CLASS 5
Reference test 1,5 x 1,5 m., 2 sashes.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
