Millennium 2000 Door System
45 mm coplanar door system for commercial premises and buildings.
Available in 2 versions:
- Millenium 2000 door: with face fix hinges and 2 or 3 high resistance pins capable of supporting up to 180 kg. per sash.
- Millenium 2000 automatic door: Allows doors to be made for automatic opening sliders. This new solution that optimises the stay spaces, has been specifically designed to resolve entrances with high transit (offices, shopping centres, hospitals…) as it guarantees good pedestrian circulation as well as security in emergency situations.
Possibility of 1 or 2 sashes, with or without fixed lights, presenting the double option of a motor in order to generate the opening: one at 12 cm. high and another being minimalist at only 7 cm high.
Possibility of 1 or 2 sashes, with or without fixed lights, presenting the double option of a motor in order to generate the opening: one at 12 cm. high and another being minimalist at only 7 cm high.
Technical Data
Accoustic insulation
Maximum glazing: 30 mm.
Maximum accoustic insulation Rw= 38 dB
Transmittance
Uw from 2,3 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Open In:
· Practicable 1 & 2 sashes.
Open Out:
· Practicable 1 & 2 sashes.
Swing opening:
· 1 & 2 sashes.
Automatic opening:
· 1 & 2 sashes.

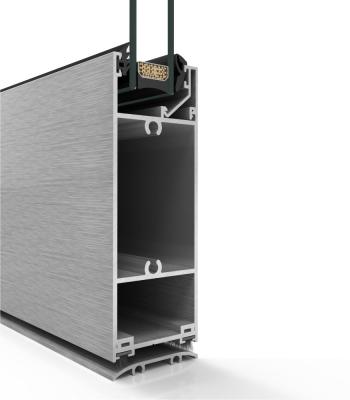

Sections / Profile thickness
SECTIONS
· Frame – 45 mm.
· Sash – 45 mm.
PROFILE THICKNESS
Door 2,0 mm
Categories achieved at test centre
Resistance to mild impact
(EN 13049:2003) : CLASS 5 (max)
Test on door reference
1,8 x 2,2 m., 2 sashes.
Laminated glass 3 3
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)=1.450 mm.
Height(H)= 3.000 mm.
Maximum weight/sash:
- 180 Kg.
- 120 Kg. (automatic version)
Please consult regarding maximum weight
and dimensions for other opening types
Finishes
Colour powder coating (RAL, mottled y rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
