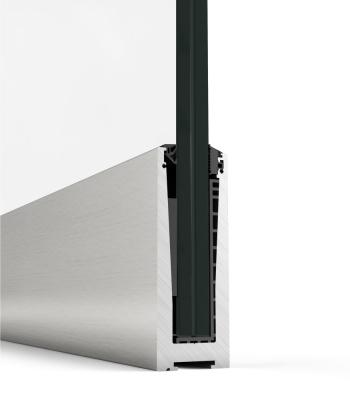

Minimalist balustrading system which combines the most trend setting esthetic with the highest demands in safety.

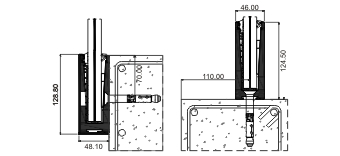

It consists of a system in "U" designed to lodge laminated safety glass and which can be fixed to wrought iron or to the edge of the iron work.
The View Crystal system withstands a stress of 1.0 kN/m applied at 1.1 meters of the bottom. Therefore, according to the Eurocode 1, it is suitable for use in the areas A, B, C1, C2, C3, C4 and E.
Technical Data
-Bar balustrading
-Bar balustrading with top edge
Tests according to UNE 85237:1991, UNE 85.238:1991 and UNE 85240:1990 norms, requirements established in Eurocode 1 according to EN 1991-1-1:2003 /AC: 2010
1 – Static horizontal test towards the exterior.
2 – Static horizontal test towards the interior.
3 – Dynamic test with mild object.
4 - Dynamic test with hard object.
5 – Verification of the specifications of the Eurocode according to the table 6.12 for categories of use of 1kN/m.
CLASSIFICATION ACCORDING TO UNE 85240:1990:
Class A-EXCELLENT
Reference test on the balustrading with extruded aluminum and glass, with top free edge bar at total height 1100mm. (H) x 1500mm. (L)
Reference test on the balustrading with extruded aluminum and glass, at total height 1100mm. (H) x 1500mm. (L)
TYPE
LAMINATED GLASS
COMPOSITION
10- 1.52- 10 8- 1.52- 8 6- 1.52- 6
10- 1.14- 10 8- 1.14- 8 6- 1.14- 6
10- 0.76- 10 8- 0.76- 8 6- 0.76- 6
10- 0.38- 10 8- 0.38- 8 6- 0.38- 6
Wood effect powder coating
Anti-bacterial powder coating
Anodized
