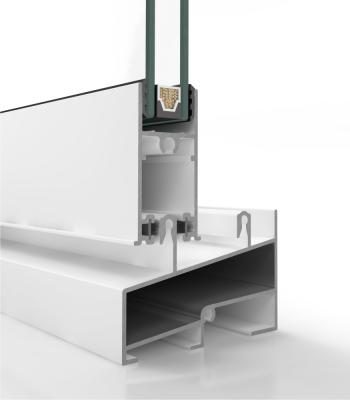

5000 Integral Slider System
A sliding system that consists of a lateral frame and an incorporated shutter guide.
Technical Data
Accoustic insulation
Maximum glazing: 18 mm.
Maximum accoustic insulation Rw=34 dB
Transmittance
Uw from 2,4 (W/m²K),
Please consult typology, dimensions and glass
Opening possibilities
Sliding of 2, 3 & 4 sashes.
Sections / Profile thickness
SECTIONS
· Frame – 121 mm.
· Sash – 28 mm.
PROFILE THICKNESS
Window 1,5 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Height(H)=2.600 mm.
Maximum weight/sash 80 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 3
Air permeability (EN 12207:2000):
CLASS 8A
Wind resistance (EN 12210:2000):
CLASS C5
Reference test 1,20 x 1,20 m., 2 sashes
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
