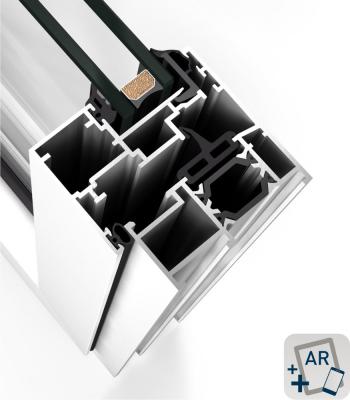

Cor-60 Hidden Sash System with thermal break

Possibility of straight or curved beads

Accoustic insulation

Maximum glazing: 28 mm.

Maximum accoustic insulation Rw=41 dB

Transmittance

Uw from 1,5 (W/m²K)

Please consult typology, dimensions and glass

Opening possibilities

Open In:

Practicable 1 & 2 sashes

Turn-tilt 1 & 2 sashes

Hinged

Sections / Profile thickness

SECTIONS

· Frame – 60 mm.

· Sash – 60 mm.

PROFILE THICKNESS

window 1,6 mm.
balcony 1,6 mm.

Polyamide strip length 24 mm.

Maximum dimensions / Maximum weight

MAXIMUM DIMENSIONS

Width(L)= 1.300 mm.

Height(H)= 2.400 mm.

*Single sash window, turn-tilt

Maximum weight/sash 120 Kg.

Please consult regarding maximum weight

and dimensions for other opening types

Categories achieved at test centre

Air permeability (EN 12207:2000):

CLASS 4

Water tightness (EN 12208:2000):

CLASS 9A

Wind resistance (EN 12210:2000):

CLASS C5

Reference test 1,13 x 1,16 m., 1 sash.

Finishes

Possibility of dual colour

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
