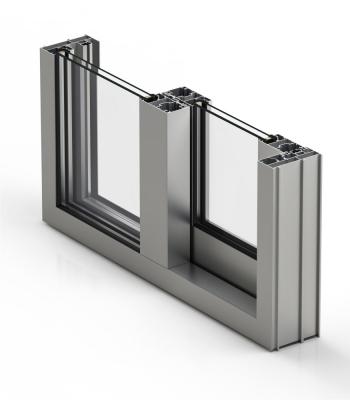

Mediterranean Balcony Sliding
A single or dual rail sliding balcony system with fixed lights and sashes. There is a hidden rail in the fixed zone and a straight style in the frame and sash.
Thanks to its large glazing capacity of up to 34 mm, it guarantees a high degree of sound proofing.
The sash and frame are perimetral.
Technical Data
Accoustic insulation
Maximum glazing: 30 mm.
Maximum accoustic insulation Rw= 35 dB
Maximum accoustic insulation Rw= 35 dB
Transmittance
Uw from 2,1 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Single Rail:
- 1 sash 1 fixed light
- 2 sashes 2 fixed lights
Dual Rail 2, 3 & 4 sashes
Possibility galandage in 1 & 2 sashes
Sections / Profile thickness
SECTIONS
· Frame – 106 mm.
· Sash – 45 mm.
PROFILE THICKNESS
Balcony 1,5 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 2.200 mm.
Height(H)= 2.600 mm.
Maximum weight/sash 240 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 3
Water tightness (EN 12208:2000):
CLASS 7A
Wind resistance (EN 12210:2000):
CLASS C4
Reference test
1,49x1,24,1 sash 1 fixed light
1,49x1,24,1 sash 1 fixed light
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
