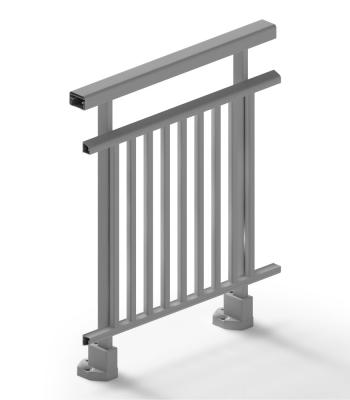

Classic Balustrade System
A balustrading system that allows for the contemplation of all types of solutions thanks to an extensive range of accessories that complement the system.
Possibility of fixing to wrought iron work or to the edge of the iron work.

Technical Data

Handrail possibilities
Square - 60 mm. width
Circular - 66 mm. diameter
Elliptical - 80 mm. external  perimeter
Possibilities
Glass Balustrading
Glass Balustrading with free top edge
Bar Balustrading
Bar Balustrading with top edge
Maximum dimensions between pilasters
1.000 mm.
Minimum height
900 mm.
Categories achieved at test centre

Tests according to UNE 85.237-1991 norms

UNE 85.238-1991 & UNE 85.240-1990





(EN 85.240:1990): Class A- EXCELLENT





1-Static horizontal test towards the exterior

2-Static horizontal test towards the interior

3-Static vertical test

4-Dynamic test with mild object

5-Dynamic test with hard object

6-Security test





Reference test on the balustrading with glass

at total height

1.100 mm.(H) x 2.450 mm.(L) and 3 pilasters.

 Reference test on the balustrading with top

free edge bar of

1100 mm (H) x 2000 mm (L) and 3 pilasters

Finishes

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
