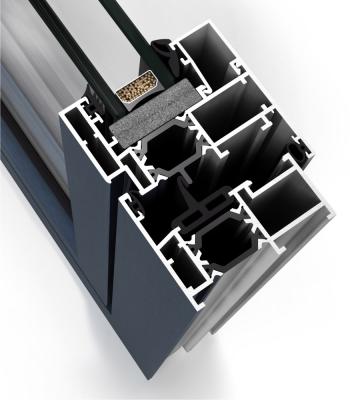

Cor-60 System with thermal break

Possibility of straight or curved beads

Accoustic insulation

Maximum glazing: 46 mm.

Maximum accoustic insulation Rw=48 dB

Transmittance

Uw from 1,0 (W/m²K)

Please consult typology, dimensions and glass

Opening possibilities

Open In:

Practicable, turn-tilt, folding,
parallel tilt, hinged.

Open Out:

Practicable, projecting-sliding,
pivoting on horizontal or
vertical axis

Sections / Profile thickness

SECTIONS

· Frame – 60 mm.

· Sash – 68 mm.

PROFILE THICKNESS

Window 1,6 mm.

Door 1,6 mm.

Polyamide strip length 24 mm.

Maximum dimensions / Maximum weight

MAXIMUM DIMENSIONS

Width(L)= 1.500 mm.

Height(H)= 2.600 mm.

*Single sash window, turn-tilt

Maximum weight/sash 120 Kg.

Please consult regarding maximum weight
and dimensions for other opening types

Categories achieved at test centre

Air permeability (EN 12207:2000):

CLASS 4

Water tightness (EN 12208:2000):

CLASS E1200

Wind resistance (EN 12210:2000):

CLASS C5

Reference test 1,20 x 1,16 m, 2 sashes

Finishes

Possibility of dual colour

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
